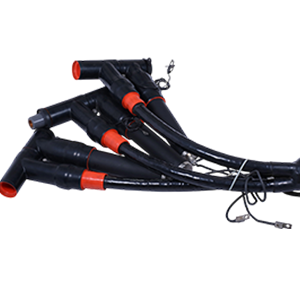

Medium Voltage screened separable connectors for switchgears. Raychem developed screened separable connectors for switchgears which are compact and space saving, having high degree of reliability and safety. These terminations are designed, developed, and tested upto 36 kV for almost all sizes of cables. Switchgear terminations are either OUTER CONE type (suitable for bushings as per EN 50181 for Type A (250 Amps), B (400 Amps), C (630/800 & 1250 Amps)) or INNER CONE type Size 2 (800 Amps) and Size 3 (1250 Amps). Screened separable connectors conform to IEEE bushings and terminations to CENELEC HD 629.1 and IS 13573-2 standards.
|
Parameter
|
|---|
|
Pre-engineered kit
|
|
Suitable for crimp and mechanical type connectors
|
|
Available in LSR and EPDM variants
|
|
Tested as per National and International Standards
|
|
Test Particulars
|
Inner Cone (RPIT)
|
Value / Details
|
||
|---|---|---|---|---|
|
|
Size 2
|
Size 3
|
24 kV
|
36 kV
|
|
Voltage (U0/U (Um)
|
19/33 (36) kV
|
19/33 (36) kV
|
12.7/22 (24) kV
|
19/33 (36) kV
|
|
Stress Control
|
Geometric
|
Geometric
|
Geometric / Refractive
|
Geometric / Refractive
|
|
Continuous Current
|
800 Amps
|
1250 Amps
|
800 /1250 Amps
|
800 / 1250 Amps
|
|
Basic Impulse Level
|
170 kVp
|
170 kVp
|
125 kVp
|
170 kVp
|
|
Cable Cross section
|
Upto 300 sqmm
|
Upto 800 sum
|
Upto 800 sqmm
|
Upto 800 sqmm
|
|
Partial Discharge at 1.73 U0
|
Less than 10 pC
|
Less than 10 pC
|
Less than 10 pC
|
Less than 10 pC
|
|
Test Point
|
Optional
|
Optional
|
Integrated with plug
|
Integrated with plug
|
|
AC HV test for 5 minutes
|
85 kV
|
85 kV
|
57 kV
|
85 kV
|
|
Wedge Connector
|
Wedge Connector
|
Mechanical / Crimp
|
Connection Technology
|
Mechanical / Crimp
|
|
Plug In Termination (Inner & Outer Cones) System 36kV for GIS Switchgear
|
||||
