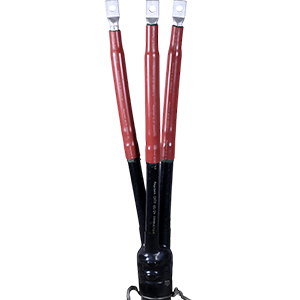

Medium Voltage Heat Shrink Terminations-Conventional and next generation.
|
Parameter
|
|---|
|
Unlimited shelf life for heat shrink components
|
|
Suitable for wide range of connectors
|
|
Immediate energization
|
|
Pre-Engineered Kit
|
|
Tested as per National & International Standards
|
|
Particulars
|
7.2 KV
|
12 KV
|
24 KV
|
36 KV
|
|---|---|---|---|---|
|
Applicable Standards
|
IEC 60502-4, CENELEC HD 629.1, IS 13573-2
|
|||
|
Rated Voltage of cable accessories
|
3.8/6.6 (7.2)
|
6.35/11 (12)
|
12.7/22 (24)
|
19/33 (36)
|
|
Brand
|
Raychem-RPG
|
Raychem-RPG
|
Raychem-RPG
|
Raychem-RPG
|
|
Accessories
|
Heat Shrink type
|
|||
|
AC Voltage test(Dry for 5 minutes )
|
17.1 kV
|
28.5 kV
|
57.1 kV
|
85.5 kV
|
|
AC Voltage test (Wet for 1 minute)
|
15.2 kV
|
25.4 kV
|
50.8 kV
|
76 kV
|
|
DC Voltage test for 15 min
|
15.2 kV
|
25.4 kV
|
50.8 kV
|
76 kV
|
|
Partial Discharge at 1.73U0
|
Less than 10 pC
|
|||
|
Impulse Voltage at ambient & elevated temp
|
60 kVp
|
75 kVp
|
125 kVp
|
170 kVp
|
|
60 cycles in air & water
|
||||
|
5 hours
|
||||
|
95 - 100° C
|
||||
|
3 hours
|
||||
|
Resistive based
(ZnO based available in termination on req.)
|
||||
|
Heat Shrinkable type
|
||||
|
As per ASTM D-2303
|
||||
|
10 kV/mm minimum
|
||||
