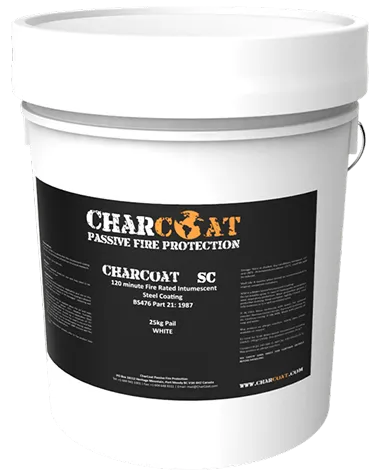

CharCoat SC is a high-performance, water-based thin-film intumescent fire protection coating designed for use on structural steel. Engineered to offer up to 120 minutes of fire resistance (BS 476 Part 21), it expands rapidly when exposed to heat, forming a robust insulating char that safeguards steel integrity during fire exposure.
This single-component solution combines aesthetic flexibility, low VOCs, and exceptionally low dry film thicknesses (DFT), making it an ideal choice for interior and semi-exterior applications in architectural, industrial, and commercial settings.
CharCoat SC is a high-performance, water-based thin-film intumescent fire protection coating designed for use on structural steel. Engineered to offer up to 120 minutes of fire resistance (BS 476 Part 21), it expands rapidly when exposed to heat, forming a robust insulating char that safeguards steel integrity during fire exposure.
This single-component solution combines aesthetic flexibility, low VOCs, and exceptionally low dry film thicknesses (DFT), making it an ideal choice for interior and semi-exterior applications in architectural, industrial, and commercial settings.
CharCoat SC utilizes intumescent technology—upon exposure to fire, the coating undergoes a controlled chemical reaction, expanding 20 to 30 times its original thickness. This results in a durable char layer that insulates steel substrates against extreme temperatures, maintaining structural stability and preventing collapse.
|
Standard/Test
|
Result
|
|---|---|
|
Fire Resistance Rating
|
Up to 120 minutes for structural steel
|
|
Tested Durations
|
SC – 120 minutes (Interior/Semi-Exterior)
|
|
Parameter
|
Value / Details
|
|---|---|
|
Fire Resistance
|
Up to 120 minutes
|
|
Application Method
|
Spray (single coat 0.600mm WFT), Brush
|
|
Coverage Rate
|
1800 g/m² @ 1.0mm DFT
|
|
Dry Film Thickness (DFT)
|
As low as 250 microns
|
|
Drying Time @ 25°C
|
Touch: 2 hrs, Hard: 4 hrs, Full Cure: 72 hrs
|
|
Coating Interval @ 25°C
|
Minimum 4–6 hrs
|
|
Color/Finish
|
White, Matte
|
|
Packaging Sizes
|
25kg Pails; other sizes available on request
|
|
Service Temperature
|
+5°C to +35°C (Storage & Application)
|
|
VOC Content
|
ZERO
|
|
Certifications
|
BS 476 Part 21, GB14907-2018
|
CharCoat SC is engineered with sustainability in mind:
