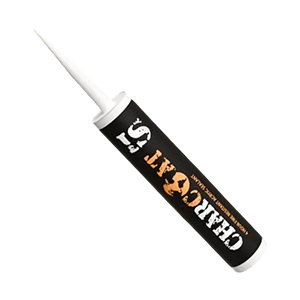

A high-performance, intumescent firestop sealant delivering up to 4 hours of fire resistance for critical penetrations and joints.
CharCoat IS is a water-based, intumescent firestop sealant designed to prevent the spread of fire and smoke through openings in fire-rated walls and floors, including service penetrations. It maintains acoustic performance and provides a flexible, durable seal for joint movement. With a robust intumescent char formation under fire exposure, CharCoat IS ensures reliable fire protection for up to 4 hours.
Core Technology: Intumescent sealant that expands at approximately 180°C to form a fire-resistant char, sealing gaps and penetrations effectively.
CharCoat IS is a water-based, intumescent firestop sealant designed to prevent the spread of fire and smoke through openings in fire-rated walls and floors, including service penetrations. It maintains acoustic performance and provides a flexible, durable seal for joint movement. With a robust intumescent char formation under fire exposure, CharCoat IS ensures reliable fire protection for up to 4 hours.
Core Technology: Intumescent sealant that expands at approximately 180°C to form a fire-resistant char, sealing gaps and penetrations effectively.

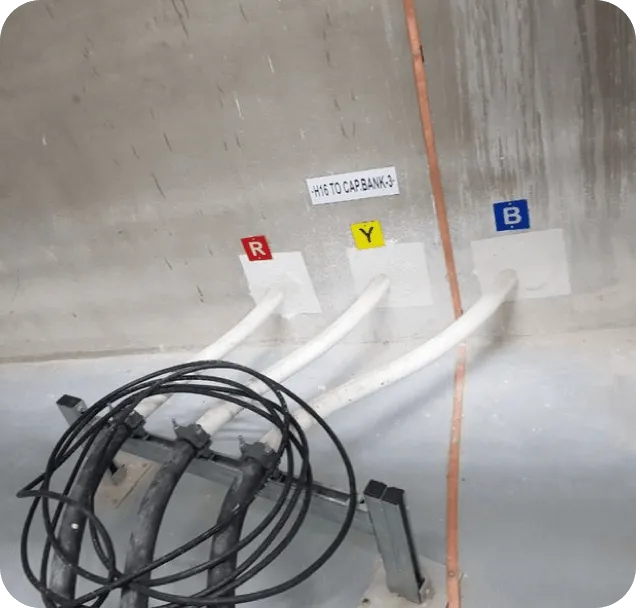

CharCoat IS cures upon exposure to atmospheric conditions, forming a flexible seal that accommodates joint movement. When exposed to fire, the sealant undergoes thermal activation at around 180°C, expanding to create a robust, intumescent char that blocks the passage of fire, smoke, and toxic gases for up to 4 hours. Its high sound insulation properties further enhance its suitability for fire-rated walls and floors. The product can be used with backing materials like stone wool to optimize performance and reduce shrinkage during curing.
|
Standard/Test
|
Result
|
|---|---|
|
Fire Resistance
|
Up to 4 hours fire resistance
|
|
EXOVA BM
|
Tested at EXOVA BM (Trada, UKAS accredited) per EN ISO 10140-2:2010
|
|
Test Reports
|
Available upon request from CharCoat technical support
|
|
Parameter
|
Value / Details
|
|---|---|
|
Fire Resistance
|
Up to 4 hours (EI 30 U/C, 45 U/C for PE conduits)
|
|
Application Method
|
Caulking gun, trowel, or brush; apply to clean surfaces
|
|
Coverage Rate
|
Varies by joint size; 2:1 width-to-depth ratio recommended (min. 12 mm depth)
|
|
Required Thickness (DFT)
|
Minimum 12 mm depth for optimal performance
|
|
Drying/Curing Time
|
Tack-free in 4 hours; full cure in ~1 month for fire performance
|
|
Color / Finish
|
Various colors, smooth finish
|
|
Packaging Sizes / Formats
|
Available in standard sealant cartridges (consult CharCoat for sizes)
|
|
VOC Content
|
4.64 g/L, water-based, EMICODE EC1PLUS compliant
|
|
Certifications
|
ETA per ETAG 026-2 and 3, EN ISO 10140-2:2010, EMICODE EC1PLUS
|
CharCoat IS is water-based, non-toxic, halogen-free, and low VOC for a safer work environment and easier regulatory compliance.
