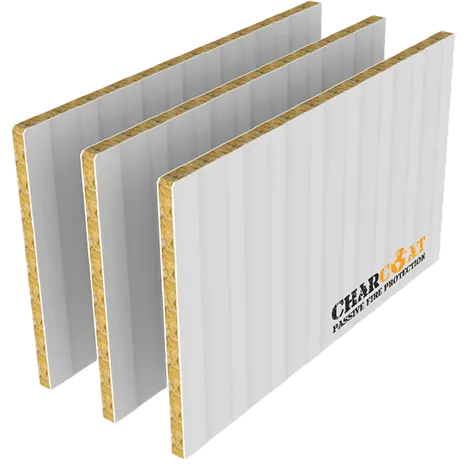

CharCoat FP is a high-performance firestop panel designed to maintain the fire resistance of walls and floors penetrated by building services such as cables, pipes, and ducts. Comprising a stone wool core sealed with CharCoat CC Coating on both faces, this panel provides a robust barrier against fire, smoke, and hot gases. It is engineered for use in demanding environments requiring up to 4 hours of fire protection.
CharCoat FP is a high-performance firestop panel designed to maintain the fire resistance of walls and floors penetrated by building services such as cables, pipes, and ducts. Comprising a stone wool core sealed with CharCoat CC Coating on both faces, this panel provides a robust barrier against fire, smoke, and hot gases. It is engineered for use in demanding environments requiring up to 4 hours of fire protection.

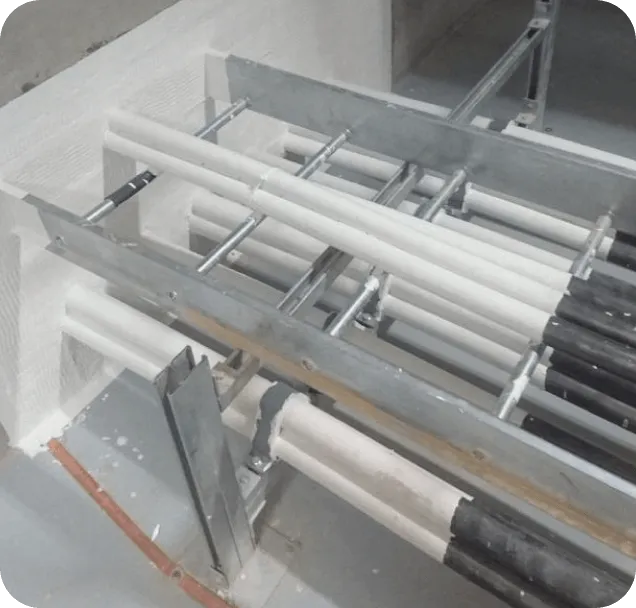

CharCoat FP leverages a stone wool core with excellent thermal insulation properties, combined with a specialized CharCoat CC Coating that forms a protective barrier. In a fire, the coating slows the heat transfer through the panel, reducing the rate at which the core heats up and acting as a heat sink for conductive penetrations like metal pipes. When paired with CharCoat IS Intumescent Sealant, it ensures a tight seal around services, preventing the passage of flames, smoke, and toxic gases. The system is rigorously tested to meet global fire safety standards.
|
Standard/Test
|
Result
|
|---|---|
|
Fire Resistance Ratings
|
Up to 4 hours (240 minutes) for electrical cables and PVC/steel pipe penetrations.
|
|
Test Standards
|
Tested per EN 13501-2 for fire resistance in supporting constructions.
|
|
Parameter
|
Value / Details
|
|---|---|
|
Fire Resistance
|
Up to 4 hours (EN 13501-2); EI 120 C/C (E 120) for Alupex pipes; E 120 for copper pipes
|
|
Application Method
|
Mechanical fixing with CharCoat IS Intumescent Sealant for service sealing
|
|
Coverage Rate
|
Coating: 1.3–1.4 kg/m²
|
|
Required Thickness (DFT)
|
Panel: 50 mm (standard); Coating: Factory-applied
|
|
Drying/Curing Time
|
Sealant: 3–6 days (depending on thickness and temperature); Max. 25 minutes (surface tack-free)
|
|
Color / Finish
|
White surface (coating), green core (panel)
|
|
Packaging Sizes/Formats
|
50 x 600 x 1200 mm panels; 64 pieces per pallet
|
|
Service Temperature
|
-30°C to +80°C (hardened); Application: -5°C to +50°C
|
|
VOC Content/Environmental
|
Compliant with BREEAM M1 Protocol; No PBT/vPvB substances
|
|
Certifications
|
EN 13501-2, BREEAM M1 Protocol
|
CharCoat FP is designed with environmental responsibility in mind
