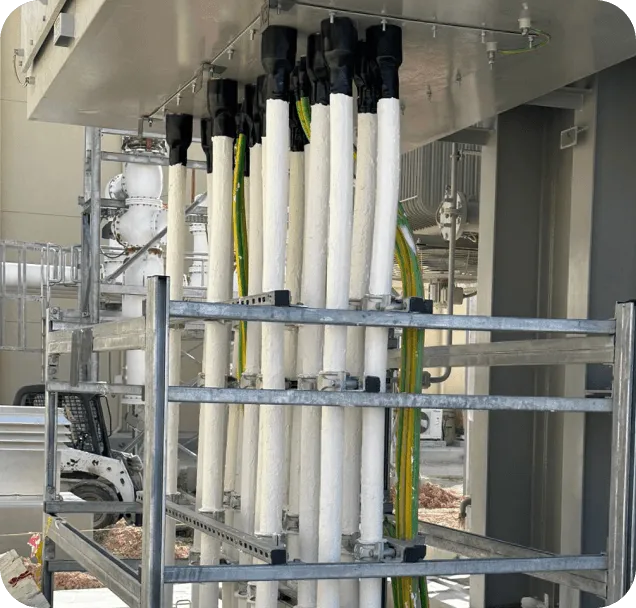

CharCoat CC is a water-based, intumescent latex coating designed to protect single, grouped, or bundled electrical cables from fire. It offers proven fire resistance performance up to 90 minutes under both cellulosic (750°C) and hydrocarbon (1100°C) fire conditions.
Formulated as a flexible, low-VOC solution, CharCoat CC prevents flame spread, maintains cable ampacity, and safeguards circuits in critical infrastructure. It is engineered to protect against real-world fire threats in industrial, marine, and commercial environments—both indoors and outdoors.
CharCoat CC is a water-based, intumescent latex coating designed to protect single, grouped, or bundled electrical cables from fire. It offers proven fire resistance performance up to 90 minutes under both cellulosic (750°C) and hydrocarbon (1100°C) fire conditions.
Formulated as a flexible, low-VOC solution, CharCoat CC prevents flame spread, maintains cable ampacity, and safeguards circuits in critical infrastructure. It is engineered to protect against real-world fire threats in industrial, marine, and commercial environments—both indoors and outdoors.
When exposed to fire or heat above 175°C, CharCoat CC expands up to 600–700%, forming a thick, protective intumescent char that insulates and shields the cable. This self-sacrificing layer prevents flame spread, inhibits oxygen access to the cable surface, and retains circuit integrity.
|
Standard/Test
|
Result
|
|---|---|
|
IEC 60331-11 / 60331-21
|
90 min @ 750°C & 1100°C on HV Power Cable (5kV–8kV)
|
|
ASTM E84 (UL723)
|
Flame Spread: 0, Smoke Developed: 15
|
|
Radiant Heat Test
|
127 minutes at 957°C – No failure
|
|
BS6853 / BS476 Part 6 & 7
|
Class “0” flame spread; low smoke and toxicity
|
|
LOI (ASTM D2863)
|
89 – Exceptional flame retardance
|
|
Salt Water Immersion
|
Passed
|
|
Rodent Resistance
|
Passed
|
|
LEED Credit
|
VOC Content: 19g/L (Compliant)
|
|
UV Stability (ASTM G155)
|
100% UV resistant – 25 years exterior durability
|
|
Parameter
|
Value / Details
|
|---|---|
|
Fire Resistance
|
Up to 90 minutes @ 750°C and 1100°C
|
|
Application Method
|
Brush, roller, or airless spray
|
|
Coverage Rate
|
~3.82 kg/m² (1.6mm DFT)
|
|
Required DFT
|
1.6mm (Fire), 0.5mm (UV only)
|
|
Drying Time
|
Touch dry: 2 hrs, Full cure: 24–72 hr
|
|
Color / Finish
|
White, matte finish
|
|

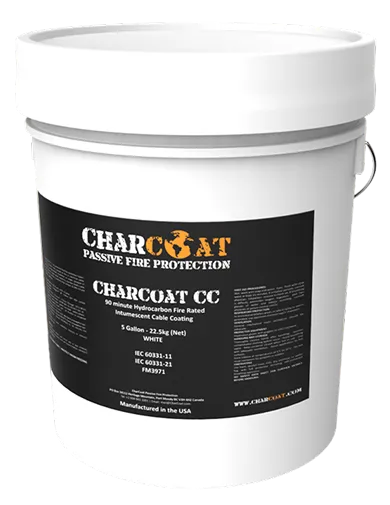

Packaging
|
22.5 kg (5 gallon plastic pails)
|
|
Service Temperature
|
-40°C to +60°C (post-cure)
|
|
VOC Content
|
19 g/L (LEED-compliant)
|
|
Shelf Life
|
18 months (unopened)
|
|
Certifications
|
ETA per ETAG 026-2 and 3, EN ISO 10140-2:2010, EMICODE EC1PLUS
|
CharCoat CC is water-based, non-toxic, halogen-free, and low VOC for a safer work environment and easier regulatory compliance.
